Easy and flexible to find the right finger

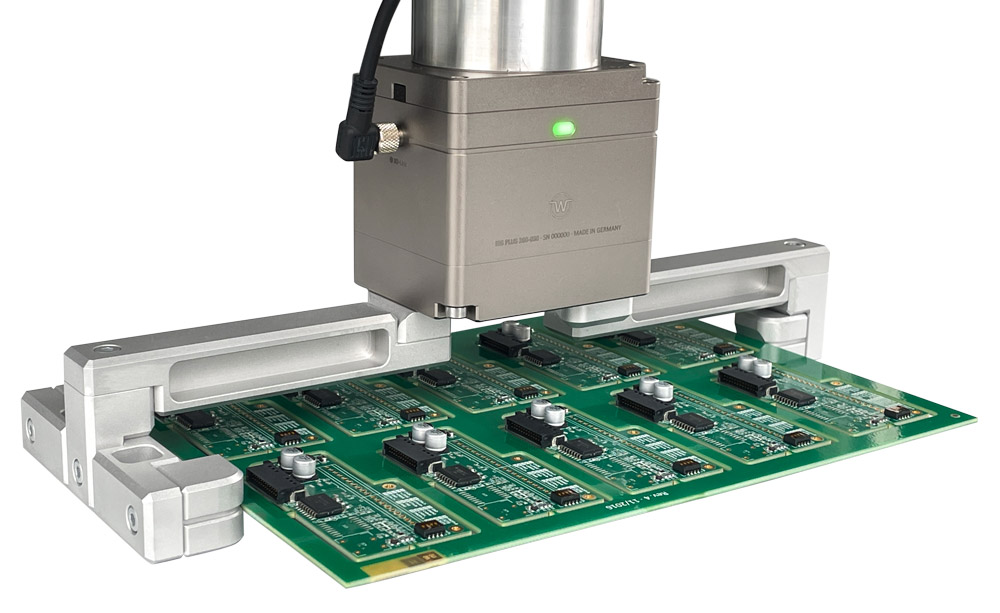

The FINGERKIT System 20 enables the flexible assembly of application-specific gripper fingers for larger gripper modules. The various elements within the system can be combined to suit the workpiece geometry and the specific handling task. A starter set containing the components required to build simple gripper fingers is available for a quick start.
Fingerkit System 20
Starterset System 20
Item-No. 5160002
Fingerkit Starter Set, size 16. Construction kit for creation of specific gripper fingers based on standard parts. Contains a basic selection of elements to build simple gripper fingers. Suitable for IEG PLUS 260, CRG 200, WPG 300 as well as appropriate GRIPKITs
BE 20-010
Item-No. 5150012
Fingerkit system 20, basic plate BE 20-010 for gripper modules IEG 76, IEG PLUS 260, CRG 200 as well as appropriate GRIPKITs
BE 20-020
Item-No. 5150013
Fingerkit system 20, basic plate BE 20-020 for gripper modules IEG 76, IEG PLUS 260, CRG 200 as well as appropriate GRIPKITs
BE 20-030
Item-No. 5150014
Fingerkit system 20, basic plate BE 20-030 for gripper modules IEG 76, IEG PLUS 260, CRG 200 as well as appropriate GRIPKITs
BE 20-050
Item-No. 5150030
Fingerkit system 20, basic plate BE 20-050 for gripper modules IEG 76, IEG PLUS 260, CRG 200, WPG 300 as well as appropriate GRIPKITs
AC 20-025
Item-No. 5150018
Fingerkit system 20, angle connector AC 20-025 for gripper modules IEG 76, IEG PLUS 260, CRG 200, WPG 300 as well as appropriate GRIPKITs
FE 20-030
Item-No. 5150015
Fingerkit system 20, finger element FE 20-030 for gripper modules IEG 76, IEG PLUS 260, CRG 200, WPG 300 as well as appropriate GRIPKITs
FE 20-050
Item-No. 5150016
Fingerkit system 20, finger element FE 20-050 for gripper modules IEG 76, IEG PLUS 260, CRG 200, WPG 300 as well as appropriate GRIPKITs
FE 20-100
Item-No. 5150017
Fingerkit system 20, finger element FE 20-100 for gripper modules IEG 76, IEG PLUS 260, CRG 200, WPG 300 as well as appropriate GRIPKITs
TE 20-060
Item-No. 5150019
Fingerkit system 20, T-element TE 20-060 for gripper modules IEG 76, IEG PLUS 260, CRG 200, WPG 300 as well as appropriate GRIPKITs
TE 20-080
Item-No. 5150020
Fingerkit system 20, T-element TE 20-080 for gripper modules IEG 76, IEG PLUS 260, CRG 200, WPG 300 as well as appropriate GRIPKITs
TE 20-100
Item-No. 5150021
Fingerkit system 20, T-element TE 20-100 for gripper modules IEG 76, IEG PLUS 260, CRG 200, WPG 300 as well as appropriate GRIPKITs
DP 20-005
Item-No. 5150022
Fingerkit system 20, spacer plate DP 20-005 for gripper modules IEG 76, IEG PLUS 260, CRG 200, WPG 300 as well as appropriate GRIPKITs
FT 20-CR
Item-No. 5150027
Fingerkit system 20, grip insert FT 20-CR for gripper modules IEG 76, IEG PLUS 260, CRG 200, WPG 300 as well as appropriate GRIPKITs
FT 20-UNI
Item-No. 5150028
Fingerkit system 20, universal grip insert FT 20-UNI for gripper modules IEG 76, IEG PLUS 260, CRG 200, WPG 300 as well as appropriate GRIPKITs
