| PRODUCT | GRIPPING FORCE | STROKE | WORKPIECE WEIGHT | COMMUNICATION |
|---|---|---|---|---|
| GRIPKIT LS 40-050 | 6-40 N | 50 mm | 1.5 kg |
Modbus RTU (RS485) |

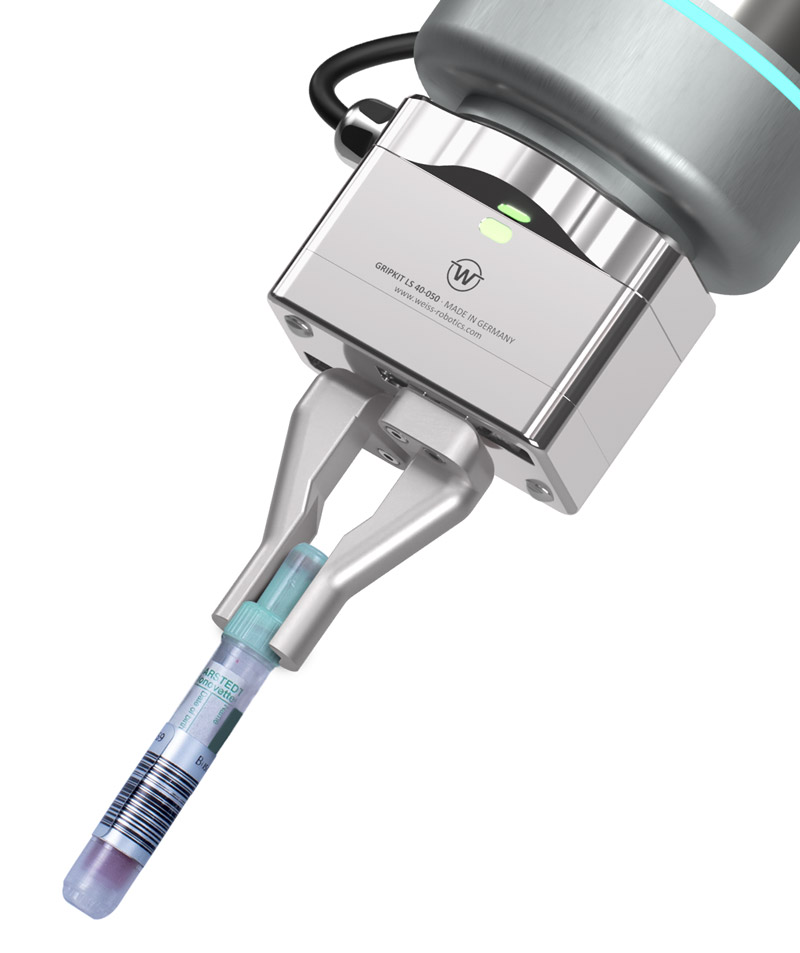

The smart gripping solution for life science automation
With the GRIPKIT LS, Weiss Robotics is expanding its portfolio of intelligent gripping solutions for laboratory automation. The compact servo gripper can be connected directly to the tool I/O of a cobot, making it particularly easy to integrate into existing processes.
Your benefits at a glance
- Reliable handling without damaging sensitive samples
- Wide, flexibly adjustable gripping range for samples of different sizes – all with a single gripping module
- FLEXGRIP technology: direct connection to the cobot’s tool I/O
Range of applications
- Life Sciences
- Electronic production
- Assembly Automation
- Inspection and measurement tasks

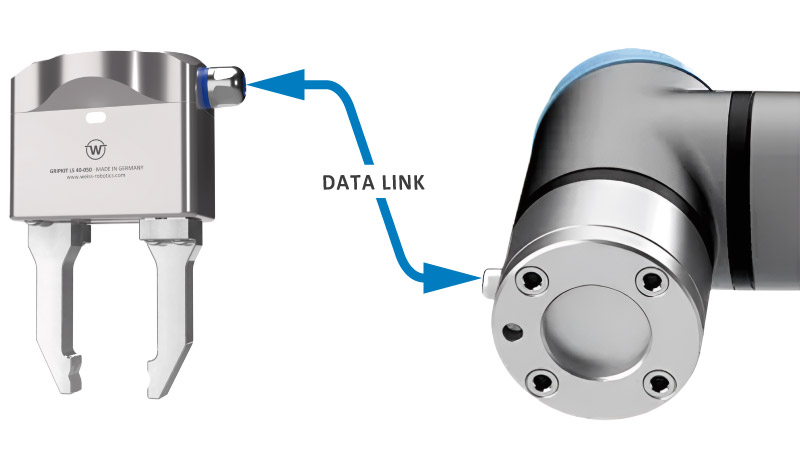

Maximum flexibility with FLEXGRIP
Equipped with Weiss Robotics’ innovative FLEXGRIP technology, GRIPKIT LS communicates seamlessly with the cobot controller via Modbus, ensuring effortless integration into your robot program. Both gripping range and force can be individually and dynamically adjusted in software to match the sample size – providing maximum flexibility in handling.

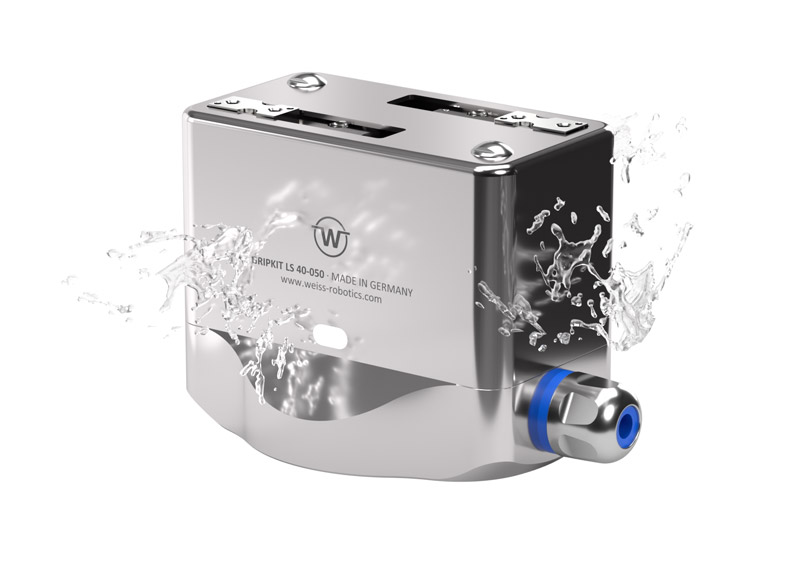

Hygienic construction
The polished housing, sealed on the control side, meets the highest requirements of hygiene, durability, and cleanability – making it the ideal choice for sensitive applications in laboratory and life science automation.
Works immediately
From unpacking to running application in 20 minutes! GRIPKIT LS offers full Weiss Robotics quality at an unbeatable price. With integrated workpiece recognition and adjustable gripping force up to 40 N, it offers precision and safety for your life science applications.
Supported cobot brands
GRIPKIT LS gripping solutions are equipped with FLEXGRIP technology by WEISS ROBOTICS. Ready-to-use plug-ins are available for these robot brands:
| Product | GRIPKIT LS 40-050 |
|---|---|
| Item No. | 5100025 |
| Actuation | servo-electric |
| Full stroke | 50 mm |
| Gripping force | 6 - 40 N |
| Cycle time 1) | 0.25 s |
| Repeatability | ± 0.005 mm |
| Workpiece weight (form fit | force fit) | 1.5 kg | 0.2 kg |
| Max. finger speed | 250 mm/s |
| Permitted finger length | 80 mm |
| Permitted weight per finger | 0.15 kg |
| Protection class | IP 54 |
| Operating temperature | 5 - 50 °C |
| ESD-compliant | |
| Communication | Modbus RTU (RS485) |
| Current consumption (Peak current) | 24 VDC, 150 mA (600 mA) |
| Weight 2) | 480 g |
| Dimensions (L x W x H) 2) | 78 x 63 x 63.5 mm |
- 1) at 4 mm stroke
- 2) without fingers
GRIPKIT LS
GRIPKIT LS 40-050
Item-No. 5100025
Easy-Clean servo gripper with cobot interface for laboratory automation, adjustable gripping force 6 - 40 N, 50 mm stroke, direct operation on the robot's tool I/O connection thanks to integrated FLEXGRIP interface.
